Features:
- Dual Band VHF/UHF DMR Radio,
- Compatible with Motorola Tier I and Tier II
- Analog and digital combined
- 10W High Power, Long Range
- High/low power selection
- IP67 Waterproof and Dustproof
- Remote Kill/Stun/Active
- Single/Group/All Call
- Scan
- Frequency Hopping
- 3000 channels + 500000 contacts
- Built-in GPS (Optional)
Technical Data:
| SPECIFICATION | TRANSMITTER | RECEIVER | |||
| Frequency Range | VHF:136-174MHz & UHF:400-480MHz |
Output Power | 10W | RF Sensitivity | ≤ 0.25uV/ ≤ 0.3uV |
| Channel Capacity | 3000 | Current | ≤2.5A | Silent Sensitivity | ≤0.2uV/≤0.25uV |
| ChannelSpacing | 12.5 KHz / 25 KHz | Modulation Distortion | ＜5%(300-3000Hz) | Audio Frequency Power | ≥500mW |
| Operating Voltage | 7.4V | Maximum Frequency Deviation |
≤ 5KHz/≤ 2.5KHz | Audio Distortion | ≤5% |
| Battery Type | 3200mAh Li-ion battery | CTCSS Frequency Deviation |
0.75KHz± 50Hz | Modulation Receiver Bandwidth |
±7KHz |
| Operating Temperature |
-30℃～+60℃ | Remanent Radiation | ≤7uW | Spurious Rejection | ≥55dB |
| Antenna Impedance | 50Ω | Modulation Mode | 16K∅F3E/11K∅F3E | Selectivity | ≥65dB |
| Audio Out Power | ≥500mW | ||||
| Dimension | 128×58.5x39mm (Without Antenna) |
Remanent Modulation | ≤-35dB | Intermodulation | ≥60dB |
Resources:

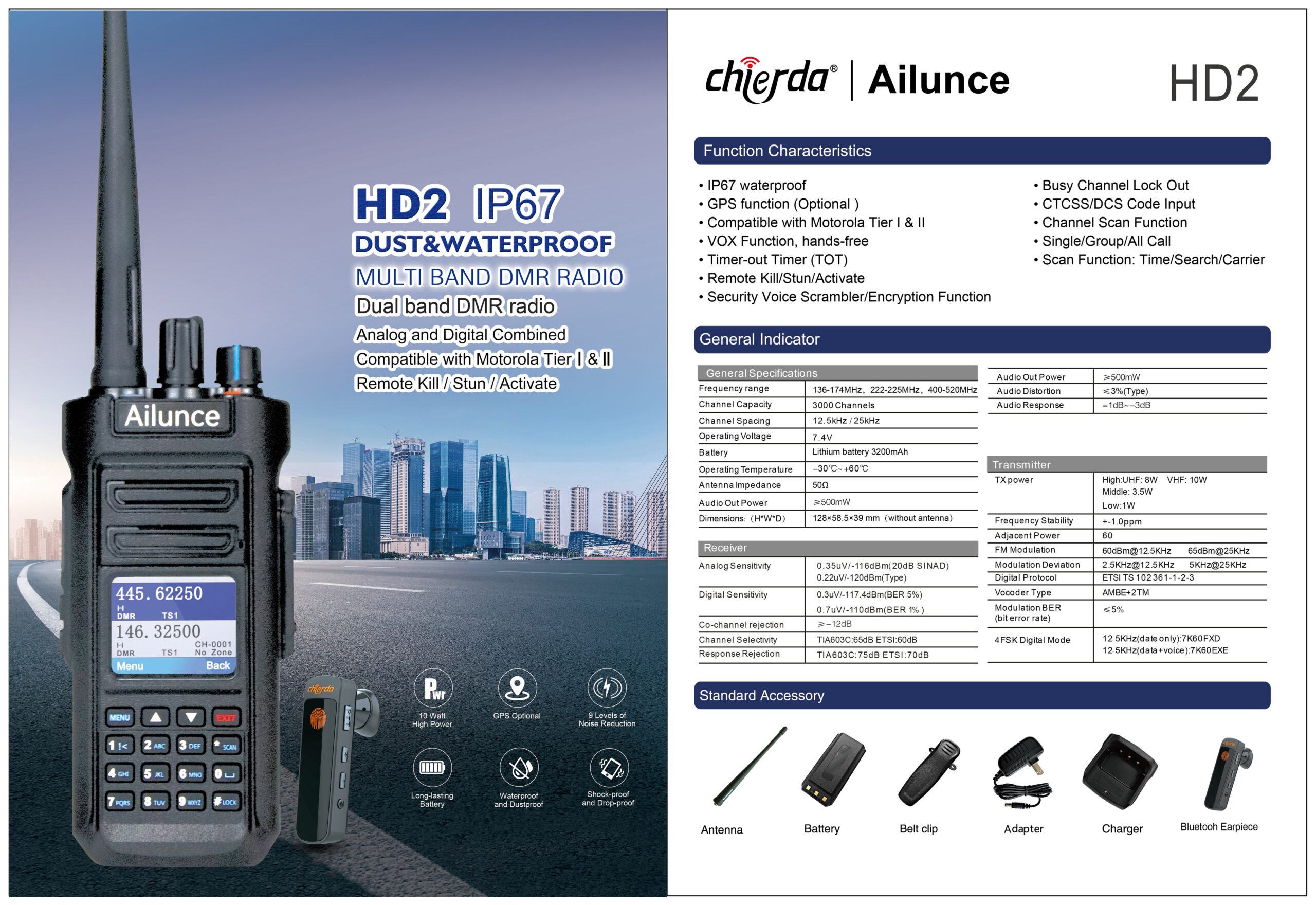

→Download HD2 Brochure
