ZL2 Heavy Duty Encryption DMR Digital Two Way Radio

Features:

5W DMR Radio, Compatible with MOTOTRBO Radio
DMR & Analog mode combined, Conform With DMR Tier I&II,
High/Low Power Selection: 5W/1W
Tail Elimination Function
CTCSS/DCS
Repeater Capable
Talk Around function
Battery Save Function
Channel / Priority Scanning
Two different housing, ZL2 & ZL2D
Monitor Function: This function enables you to monitor all the communications on the same channel.
Low Voltage alarm: When you are in a lower battery capacity, it will remind you to charge.
Battery power saving settings: To save power and extend standby time
Time-out timer: This function is used to limit the user’s time-out transmission on one channel, and also to prevent the walkie-talkie from being damaged due to long-time transmission.
VOX hands-free function: When this function is on, the transmitter will be activated by your voice and transmit the signal directly.
SQL: The strength of the noise in the received signal is corresponding to the strength of the signal. The stronger the signal, the weaker the noise.
Alarm mode: When you are in an emergency, you can trigger a local alarm and remote alarm

Standard Package:

Radio*1
Antenna*1
Battery*1
Charger*1
Belt Clip*1
Hand Strap*1
User’s Manual *1

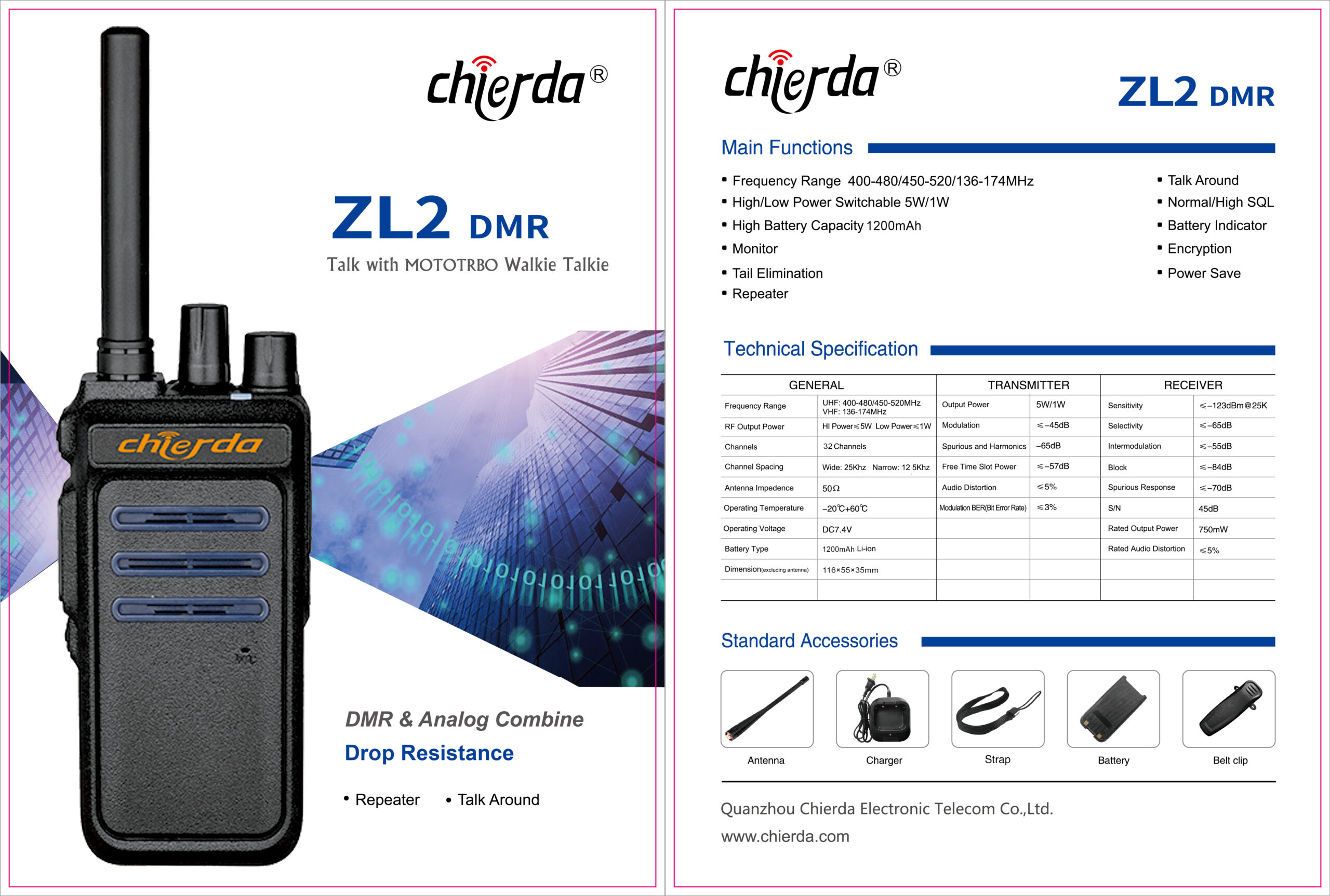

Chierda ZL2 series is a digital DMR radio, and it conforms with DMR Tier I&II. It has great compatibility and can work with MOTOTRBO radios.

Repeater Capable

ZL2 can connect with DMR repeater to extend communication range. When talk around function is on, change the transmitter frequecy and receiver frequency, then they can talk directly.

Rugged Construction

ZL2 has exceptional durability. It is robust and rugged, which can use in harsh environments.

Technical Data:

SPECIFICATION		TRANSMITTER		RECEIVER
Frequency Range	VHF：136-174MHZ or UHF：400-480MHz/ 450-520MHz	Output Power	5W	RF Sensitivity	≤0.25uV /≤0.3uV
Channel Spacing	128	Current	≤1.5A	Silent Sensitivity	≤0.2uV/≤0.25uV
Memory Channel	12.5 KHz / 25 KHz	Modulation Distortion	＜5%(300-3000Hz)	Audio Frequency Power	≥500mW
Rated Voltage	7.4V DC	Maximum Frequency Deviation	≤5KHz / ≤2.5KHz	Audio Distortion	≤5%
Battery Capacity	1200mAh/2200mAh	CTCSS Frequency Deviation	0.75KHz±50Hz	Modulation Receiver Bandwidth	±7KHz
Frequency Sensitivity	±2.5ppm	Remanent Radiation	≤7uW	Spurious Rejection	≥55dB
Antenna Impedance	50Ω	Modulation Mode	16K∅F3E/11K∅F3E	Selectivity	≥65dB
Dimension	116x55x35 mm (Without Antenna)	Remanent Modulation	≤-35dB	Intermodulation	≥60dB
