Features:
- Rugged construction
- 10W High Power
- VOX hands-free Function
- Extended Battery Life
- Type-C Charging
- Scan
- One key Group Call
- Emergency Alert Button
- Wireless Copy
- 2600mAh High Capacity Battery
Application:
- Security
- Construction Sites
- Warehouses
- Off Road
- Transportation/Logistics
Standard Package:
- Radio*1
- Antenna*1
- Battery*1
- Desktop Charger*1
- Belt Clip*1
- Hand Strap*1
- User’s Manual*1

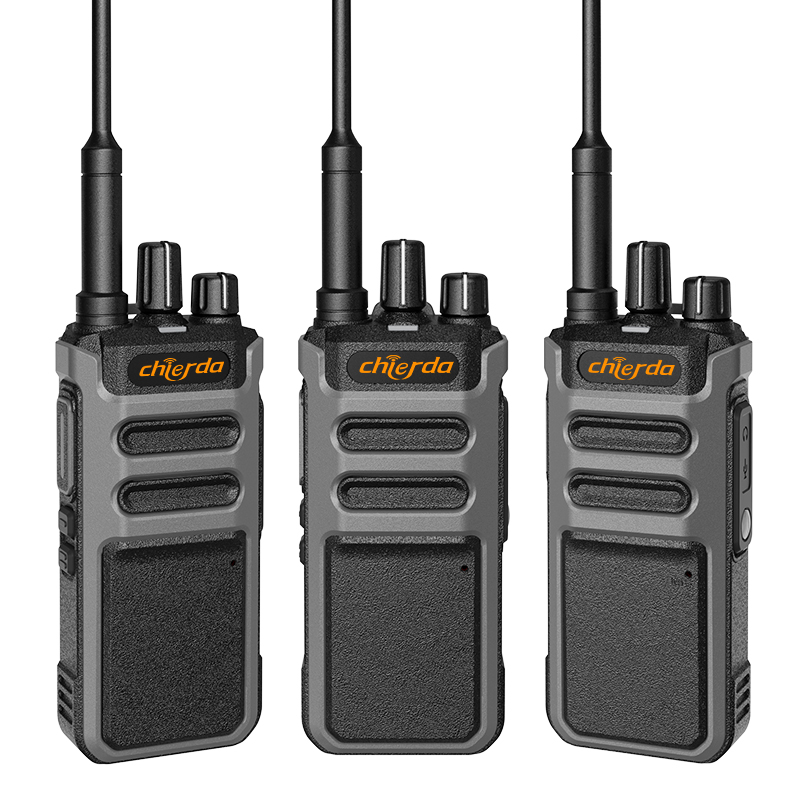

Chierda TC378 is a high power long range walkie talkie. It features a rugged construction and stable signal penetration. It is a great tool for construction sites, warehouses, and other harsh environments.
One-key Frequency Pairing
TC378 walkie talkie allows for quick pairing. You don’t need to program the channels one by one. Just press the side keys, and you can pair the frequency with others.
One Key Group Call Function
You can freely set a group with other operators. Pressing one key, you can start a group call with your partners.
VOX Hands-free Function
VOX(voice-operated) function can free your hands. You don’t need to push to talk when activating this function.
Technical Data
| SPECIFICATION | TRANSMITTER | RECEIVER | |||
| Frequency Range | VHF:134-176MHz or
UHF:400-480MHz |
Output Power | 10W | RF Sensitivity | ≤ 0.25uV/ ≤ 0.3uV |
| Channel Spacing | 16 | Current | ≤2.5A | Silent Sensitivity | ≤0.2uV/≤0.25uV |
| Memory Channel | 12.5 KHz / 25 KHz | Modulation Distortion | <5%(300-3000Hz) | Audio Frequency Power | ≥500mW |
| Rated Voltage | 7.4V DC | Maximum Frequency Deviation |
≤ 5KHz/≤ 2.5KHz | Audio Distortion | ≤5% |
| Battery Capacity | 2600mAh | CTCSS Frequency Deviation |
0.75KHz± 50Hz | ||
| Frequency Sensitivity | ± 2.5ppm | Remanent Radiation | ≤7uW | Spurious Rejection | ≥55dB |
| Antenna Impedance | 50Ω | Modulation Mode | FM | Selectivity | ≥65dB |
| Dimension | 123.5×56.3×36.3mm (Without Antenna) |
Intermodulation | ≥60dB | ||
