Features:
- 5W DMR Radio
- Digital and Analog Compatible
- AES256 encryption, compatible with MOTOTRBO
- High/Low power selection
- All/Group/Single call function
- Remote Kill/Active
- Support quick charging
- Dual time slots
- Offline function
Application:
- Public safety
- Government departments
- Security team
Standard pack:
- radio*1
- Antenna*1
- Charger set*1
- Battery*1
- Belt clip*1
- Hand strap*1
- Manual book*1
Wide Coverage

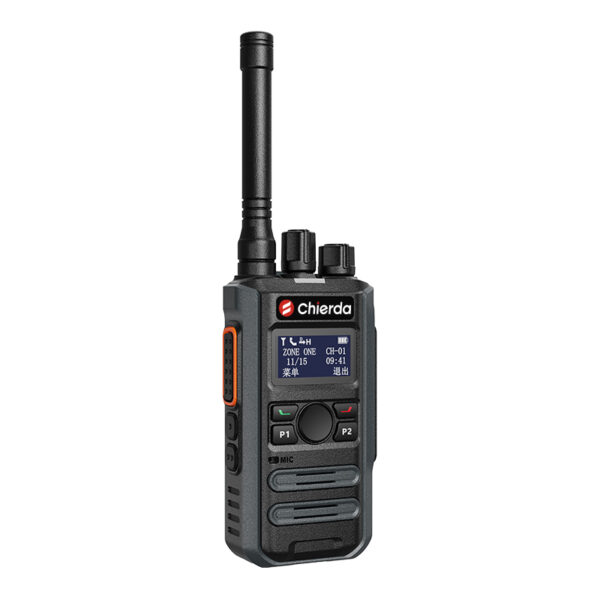

DP300 radio allows you to choose between low power(1W) and high power(4W) according to the usage. It can deliver clear calls across 30,000sq.m/350,000sq.ft. Besides, it is repeater capable for extended range.
Dual Mode
DP300 supports digital and analog modes. Plus with Dual time slots, the efficiency of your talk is higher.
AES256 Encryption
DP300 is a digital encrypted radio and adopts AES256 encryption. Staff can coordinate without fear of interception and interference.
Flexible Calling Modes
DP300 radio has 3 flexbile call modes, single call, group call, and all call. Single call can talk to one person. Group call can notify the whole group at a time; and All call can broadcast. By doing so, using different call modes can reduce radio traffic and ensure critical messages reach the right people
Quicker Charging
DP300 radio is equipped with a 2000mAh battery. The battery can outstand for 15 hours of working. With Type-C compatibility, it only takes 150 minutes to fully charge the radio.
Technical Data:
| GENERAL | TRANSMITTER | RECEIVER | |||
| Frequency Range | UHF:400-480MHz | Output Power | Low: 1W
High: 4W |
Analog Receiver Sensitivity | 0.35uV/-116dBm(20dB SINAD） 0.22uV/-120dBm(Type) |
| Channels | 64 (2 zone) | Frequency Sensitivity | ±1.0ppm | Digital Receiver Sensitivity | 0.3uV-117.4dBm(BER 5%) 0.7uV/-110dBm(BER 1%) |
| Channel Spacing | 12.5kHz/25kHz | Adjacent Channel Power | -60dBm@12.5kHz | Blocking | 84dB |
| Antenna Impedence | 50Ω | Modulation Mode | FM | Adjacent Channel Selectivity | TIA603C:-65dB ETS1:-60dB |
| Operating Temperature | -20℃+60℃ | Modulation Constraints | 2.5kHz@12.5kHz 5kHz@25kHz |
Audio Frequency Power | ≥500mW |
| Storage temperature | -40℃+85℃ | Audio Distortion | ≤5% | Audio Response | +1~-3dB |
| Operating Voltage | DC 7.4V | Vocoder Type | AMBE+2TM | Receiving Spurious Transmitting | ≤-57dBm@30MHz~1GHz |
| Battery Type | 2000mAh | 4FSK Digital Modulation | 12.5kHz(data only)7K60FXD | ≤-47dBm@1GHz~12.75GHz | |
| 12.5kHz(data+voice)7K6OFXE | Audio Distortion | ≤3%(Type) | |||
| Dimension (No indude antenna and knob) |
106*54*31mm | Digital Protocol | ETSI TS 102361-1.-2.-3 | Spurious Response | TIA603C:-65dB ETSL-65dB |
