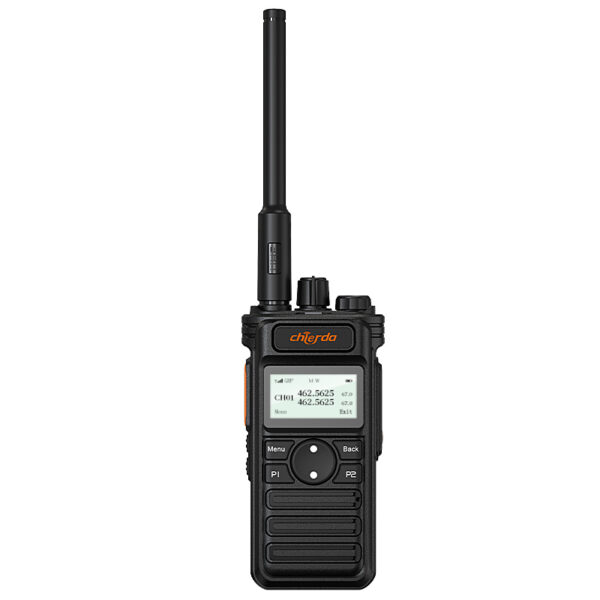

CD108S UHF High Power Handheld Radio with LCD Display

Features:

• Long Range and 8 Repeater Channels
• One Key Group Call Function
• 2500mAh Battery
• Type-C Charging
• LCD Display
• Powerful Flashlight
• VOX Hands-free function

Chierda CD108S UHF radio is rugged and durable. It is easy to operate with an LCD screen and half keyboard. It is ideal for use in manufacturing, factory, construction, and outdoor.

Long Range UHF Radio

With 10W output power, CD108S has much stronger penetration to reach a long distance with up to 6000sq on a floor or 50 floors in a building. If you in a dense forest, it can reach a range of 3-5 km.

Quick Pairing

CD108S is compatible with other walkie talkies. You can quickly pair the frequency to talk to your partners.

LCD Display

It features a 1.46-inch LCD display and half keyboard. Users can directly get the radio information from the screen. User-friendly operation.

Group Call

You can set up a group and customize the key function. After long pressing the key, you can quickly start a group call.

Long Battery Life

CD108S is equipped with a 2500mAh Li-ion battery, which can continuously be used for 15 hours and outlast 117 hours on standby. In addition, it has two ways to charge, Type-C charging and desktop charging.

Standard Package:

Technical Data:

Specification		Transmitter		Receiver
Frequency Range	UHF: 400-480MHz	Output Power	≤10W	RF Sensitivity	≤0.25uV/≤0.3uV
Channel	16	Current	≤2.5A	Silent Sensitivity	≤0.2uV/≤0.25uV
Memory Channel	12.5KHz/25KHz	Modulation Distortion	＜5%（300-3000Hz）	Audio Frequency Power	≥500mW
Rated Voltage	7.4V DC	Maximum Frequency Deviation	≤5KHz/≤2.5KHz	Audio Distortion	≤5%
Battery Capacity	2500mAh	CTCSS Frequency Deviation	0.75KHz±50Hz	Intermodulation	≥60dB
Frequency Sensitivity	±2.5ppm	Remanent Radiation	≤7uW	Spurious Rejection	≥55dB
Antenna Impendance	50Ω	Modulation Mode	FM	Selectivity	≥65dB
Dimension	119x54x37mm (without antenna and knobs)

Resources:

→Download CD108S Manual
