CD108D Hidden LED Display Wireless Replication Long Range Two Way Radio

10W High Power Analog Radio, Long Range Walkie Talkie

Category:

Features:

  • 10W High Power, Long Range
  • Hidden Display
  • VOX Hands-free Function
  • 2500mAh Battery
  • Alarm Mode
  • Powerful Flashlight
  • Wireless Copy
  • SQL
  • 2 Different housing to choose from, CD108 & CD108D

Application

  • Outdoor
  • Warehouses
  • Hunting
  • Construction Sites

Standard Package:

  • Radio*1
  • Battery*1
  • Antenna*1
  • Charging cradle*1
  • Belt Clip*1
  • Strap*1
  • Users’ Manual*1

With 10 watt output power, CD108D long-range walkie-talkie provides extended communication coverage and deliver crystal clear sound.

Wireless Copy

The wireless copy function allows users to easily duplicate settings, such as frequencies and channels, from one device to another without the need for programming.

Multiple Charging

CD108D comes with a desktop charger. You can also charge the radio via power bank and car power supply.

Long Battery Life

CD108D walkie talkie is equipped with a 2500mAh rechargeable battery, which can outlast for 12-18 hours in working condition and 200 hours for standby.

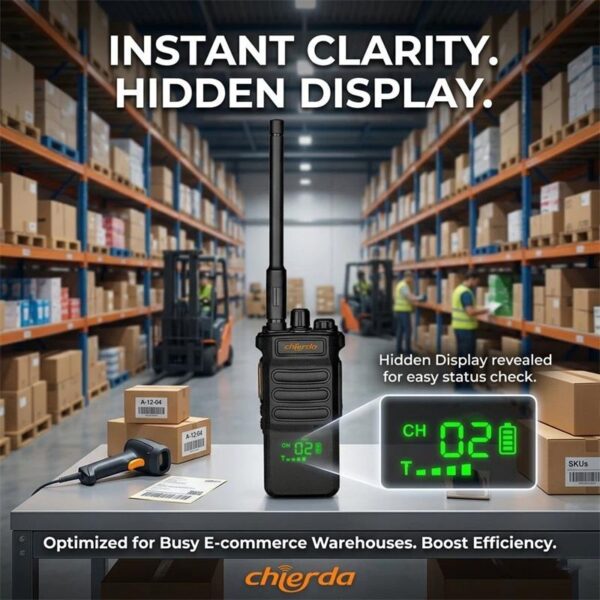

Hidden Display

CD108D walkie talkie has a 1.4-inch hidden display. You can easily see the information from the hidden screen, such as channel number, signal and power level.

Emergency Alarm

CD108D has an emergency alarm button. Long press the button, it would send a loud alert to attract others’ attention. It is useful at job sites.

VOX hands-free function

The VOX (Voice-Activated Transmission) function allows hands-free operation, activating the radio automatically when it detects your voice.



Technical Data:

SPECIFICATION TRANSMITTER RECEIVER
Frequency Range VHF:136-174MHz or
UHF:400-480MHz
Output Power 10W RF Sensitivity ≤ 0.25uV/ ≤ 0.3uV
Channel Spacing 16 Current ≤2.5A Silent Sensitivity ≤0.2uV/≤0.25uV
Memory Channel 12.5 KHz / 25 KHz Modulation Distortion <5%(300-3000Hz) Audio Frequency Power ≥500mW
Rated Voltage 7.4V DC Maximum Frequency
Deviation
≤ 5KHz/≤ 2.5KHz Audio Distortion ≤5%
Battery Capacity 2500mAh CTCSS Frequency
Deviation
0.75KHz± 50Hz Modulation Receiver
Bandwidth
±7KHz
Frequency Sensitivity ± 2.5ppm Remanent Radiation ≤7uW Spurious Rejection ≥55dB
Antenna Impedance 50Ω Modulation Mode 16K∅F3E/11K∅F3E Selectivity ≥65dB
Dimension 119x54x37mm
(Without Antenna)
Remanent Modulation ≤-35dB Intermodulation ≥60dB

Resources:

→Download CD108D Brochure

→Download CD108D Programming Software
