CD11 Compact Long Range Walkie Talkie for Hotel

Features:

• Compact Design, Dual Antenna in One Pack
• 1-7 km Talk Coverage
• One-key Channel Copy
• Frequency Hopping, Scrambler
• Voice Companding
• FCC & CE Certified
• Type-C Charging

Application:

• Hotel
• Retail
• Shopping Mall
• Restaurants

Standard Package:

• Radio*1
• Battery*1
• Desk Charger*1
• Belt clip*1
• Strap*1
• Antenna*2(long and short)
• User’s manual*1

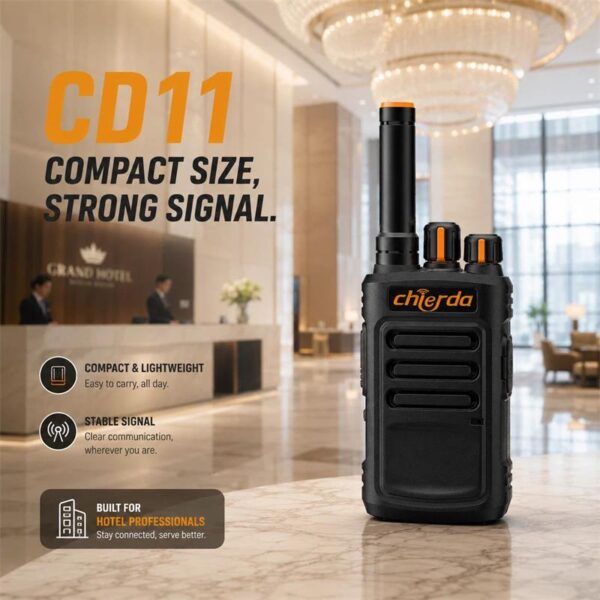

Compact Design

Chierda CD11 is a 5 watt 2 way radio. It features a compact and portable body. Even a woman staff can grab the radio with ease. Raised ergonomic keys and buttons make it user-friendly.

Long Range Walkie Talkie

It is strictly tested that CD11 radio can reach as far as 7 kilometer range in open areas. You can easily talk with other staff in different stories.



Highly Secure

CD11 is quipped with a prevent decoding function. It is a perfect option for hotel security.

Technical Data

SPECIFICATION		TRANSMITTER		RECEIVER
Frequency Range	UHF or VHF	Output Power	≤5W	RF Sensitivity	≤0.25uV/≤0.3uV
Channel	16	Current	≤1.6A	Silent Sensitivity	≤ 0.2uV/≤0.25uV
Memory Channel	12.5 KHz/ 25 KHz	Modulation Distortion	<5%(300-3000Hz)	Audio Frequency Power	≥300mW
Rated Voltage	7.4V DC	Maximum Frequency Deviation	≤ 5KHz/ ≤ 2.5KHz	Audio Distortion	≤5%
Battery Capacity	1200mAh/1800mAh	CTCSS Frequency Deviation	0.75KHz±50Hz	Modulation Receiver Bandwidth	±7KHz
Frequency Sensitivity	±2.5ppm	Remanent Radiation	≤ 7uW	Spurious Rejection	≥55dB
Antenna Impedance	50Ω	Modulation Mode	FM	Selectivity	≥ 65dB
Dimension	93x52x32mm (without antenna )	Remanent Modulation	≤-35dB	Intermodulation	≥60dB
