Features:
- 5W DMR Radio
- AES256 Encryption, Compatible with Motorola, Strong Compatibility
- VOX Hands-free Function
- Emergency Alarm Function, Multiple Alarm Modes
- All/Group/Single Call Function
- Recording and Playback Function
- Selectable Low/High Power
- Repeater Capable
- Remote Kill/revive
Application:
- Security
- Meeting
- Government
Standard pack:
- Radio*1
- Antenna*1
- Charger set*1
- Battery*1
- Belt clip*1
- Hand strap*1
- Manual book*1

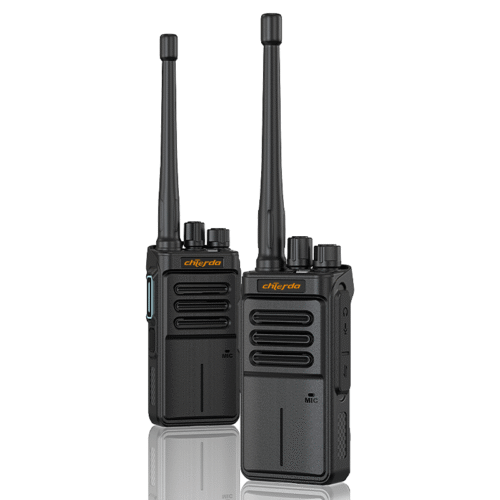

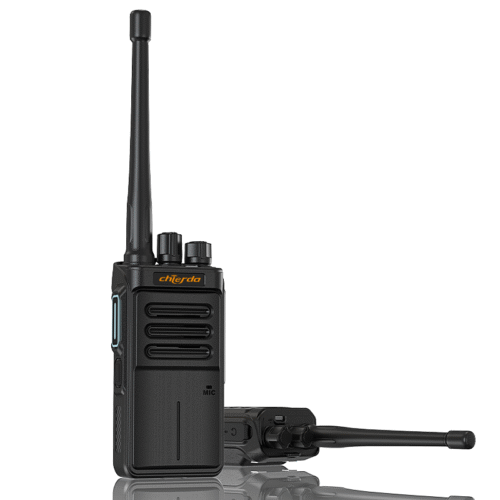

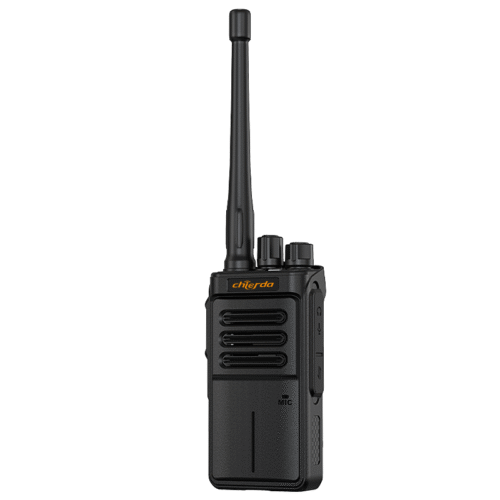

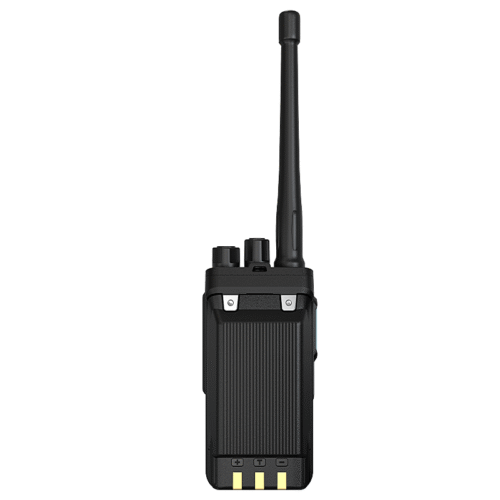

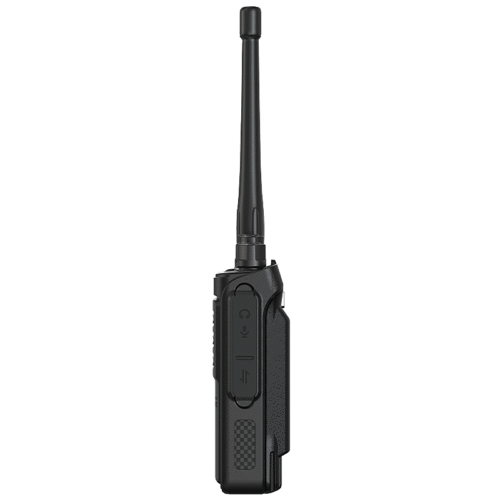

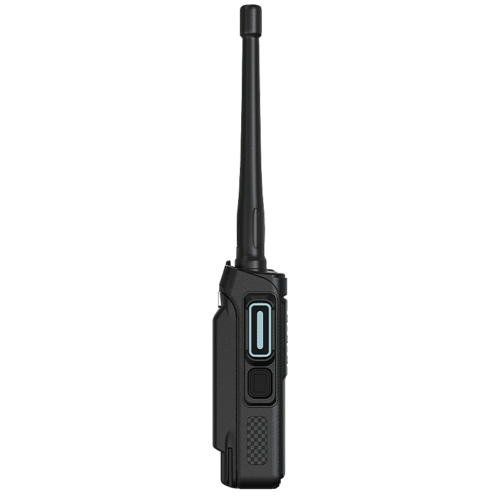

Chierda TC56D is a digital radio with advanced AES256 encryption function. It features great compatibility, powerful clarity, and long battery life. It is ideal for professional business teams who require encrypted two-way radios, such as security and government departments.
Encrypted Walkie Talkie
TC56D uses digital encryption technology to protect against interference from others. It is compatible with Motorola walkie talkies with AES256 encryption function. Provides a more secure way to make calls.
Single/Group/All Call
TC56D DMR radio supports various call modes, single call, group call and all call. You can start a conversation between individuals, groups and all people.
Emergency SOS Button
You can send out a loud emergency alert when you encounter trouble.
VOX Hands-free Operation
After programming your walkie talkie and activating the VOX function, it can be voice-operated. There is no need to press the PTT key, hands-free communication makes users more focused on their work.
Recording and Playback
TC56D DMR radio is equipped with a high-capacity built-in recording chip. It supports continuous real-time recording.
Extended Battery Life
TC56D radio is equipped with a 2000mAh Li-ion battery. Power saving function and overcurrent protect can extend its service life.
Technical Data:
| GENERAL | TRANSMITTER | RECEIVER | |||
| Frequency Range | UHF:400-480MHz | Output Power | 5W | Analog Receiver Sensitivity | 0.35uV/-116dBm(20dB SINAD） 0.22uV/-120dBm(Type) |
| Channels | 512(32zone) | Frequency Sensitivity | ±1.5ppm | Digital Receiver Sensitivity | 0.3uV-117.4dBm(BER 5%) 0.7uV/-110dBm(BER 1%) |
| Channel Spacing | 12.5kHz/25kHz | Adjacent Channel Power | -40dBm@12.5kHz | Blocking | 84dB |
| Antenna Impedence | 50Ω | Modulation Mode | FM | Adjacent Channel Selectivity | TIA603C:-65dB ETS1:-60dB |
| Operating Temperature | -20℃+60℃ | Modulation Constraints | 2.5kHz@12.5kHz | Audio Frequency Power | ≥500mW |
| Storage temperature | -40℃+85℃ | Audio Distortion | ≤3% | Audio Response | +1~-3dB |
| Operating Voltage | DC 7.4V | Vocoder Type | AMBE+2TM | Receiving Spurious Transmitting | ≤-57dBm@30MHz~1GHz ≤-47dBm@1GHz~12.75GHz |
| Battery Type | 2000mAh Li-ion | 4FSK Digital Modulation | 12.5kHz(data only)7K60FXD 12.5kHz(data+voice)7K6OFXE |
Audio Distortion | ≤3%(Type) |
| Dimension (No include antenna and knob) |
112*55*37mm | Digital Protocol | ETSI TS 102361-1.-1.3 | Spurious Response | TIA603C:-65dB ETSL-65dB |
Resources:
→Download TC56D Manual
