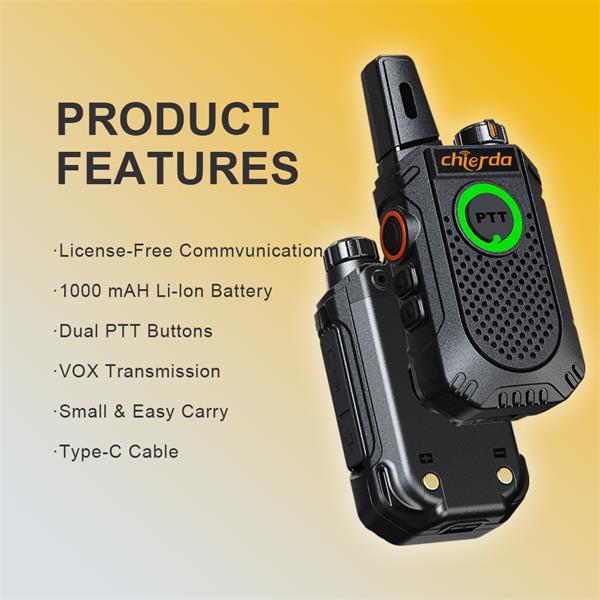

Features:
- Compact and Portable Radio
- Dual PTT Design, Front and Side key, Ring Breath Indicator
- Type-C Charging
- Frequency Hopping, Scrambler
- FCC & CE Certified
- Voice Encryption
- One-key Frequency Pairing
Application:
- Restaurants
- Bars
- Salon
- Catering
- Outdoor
- Kid toy gift
Standard Package:
- Radio*1 (Integrated Antenna)
- Battery*1
- Desk Charger*1
- Belt Clip*1
- Hand Starp*1
- Manual*1
Chierda TC18 mini walkie talkie is compact and lightweight. It features dual PTT operation and a ring breath indicator. Streamlined housing makes it portable and fits into one’s palm, even a child’s. TC18 portable handheld walkie talkie is an affordable and easy-to-use communication solution for family outings, outdoor adventures, and small businesses.
Professional Type-C Charging
TC18 walkie talkie adopts a standard Type-C charging port. It supports versatile charging methods, including power banks, car chargers, and direct charging for flexible and convenient power supply in various scenarios.
Anti-break Code
TC18 is an encrypted walkie talkie. It features a super security system and anti-break code, which can ensure your privacy and security.
Long Battery Life
TC18 walkie talkie is equipped with a 1000mAh rechargeable battery. Intelligent power-saving function makes it outlast longer after one charge.
Powerful Clarity
TC18 is upgraded with an anti-magnetic and dustproof speaker. It can send crisp clear sound and reduce noise in some ways.
Double PTT Operation
A large PTT key on the front and another PTT key on the side help you easily push to talk even when your hands are occupied.
Technical Data
| SPECIFICATION | TRANSMITTER | RECEIVER | |||
| Frequency Range | 400-480MHz
(FRS/PMR446) |
Output Power | 2W/0.5W | RF Sensitivity | ≤ 0.25uV/≤ 0.3uV |
| Channel Spacing | 16/22 | Current | ≤1.3A | Silent Sensitivity | ≤0.2uV/≤ 0.25uV |
| Memory Channel | 12.5 KHz/ 25 KHz | Modulation Distortion | <5%(300-3000Hz) | Audio Frequency Power | ≥300mW |
| Rated Voltage | 3.7V DC | Maximum Frequency Deviation |
≤ 5KHz/ ≤ 2.5KHz | Audio Distortion | ≤5% |
| Battery Capacity | 1000mAh | CTCSS Frequency Deviation |
0.75KHz± 50Hz | Modulation Receiver Bandwidth |
± 7KHz |
| Frequency Sensitivity | ±2.5ppm | Remanent Radiation | ≤ 7uW | Spurious Rejection | ≥55dB |
| Antenna Impedance | 50Ω | Modulation Mode | FM | Selectivity | ≥65dB |

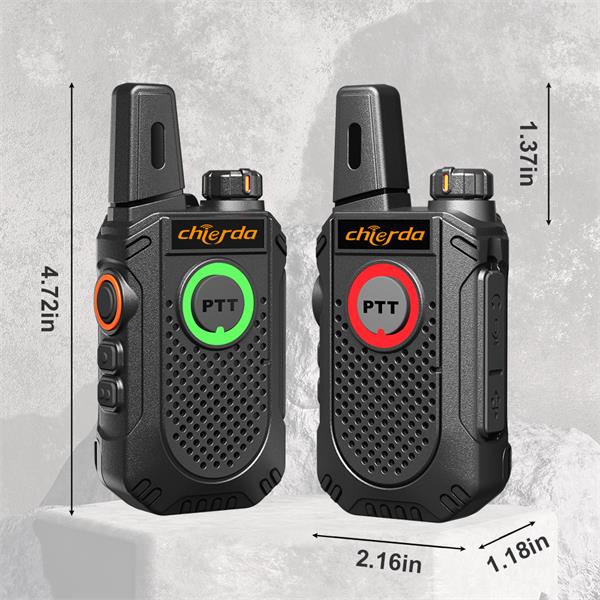

| Dimension | 83x54x32 mm (without antenna) |
Remanent Modulation | ≤-35dB | Intermodulation | ≥60dB |
Resources:
→Download TC18 Manual
→Download TC18 Programmable Software
