Features:
- Portable Two-way Radio
- 2000mAh Large Capacity Battery
- Type-C Charging
- Emergency Alert Function
- One-key Channel Copy
- One-key Frequency Pairing
- Frequency Hopping, Scrambler
Application:
- Hotel
- Security
- Property Management

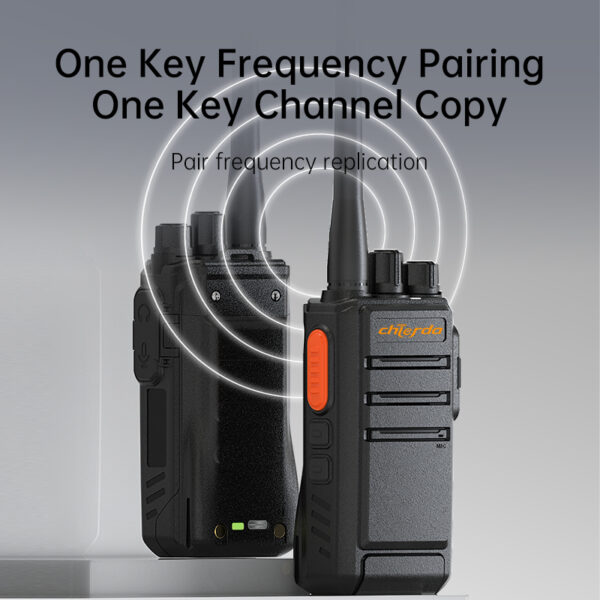

One Key Frequency Pairing
CD-Q7 has one key frequency pairing for efficient team collaboration. This function designed to simplify the frequency setting and device pairing process. Typically, walkie-talkies require manual frequency adjustments or more complex steps to pair devices. With this feature, users can simply press a button to automatically match frequencies with others, ensuring quick and seamless communication between devices.
Emergency Alert
CD-Q7 has emergency alert button. When you press this button, it can deliver harsh and loud alerts to notify others.
Type-C Charging
CD-Q7 adpots universal type-c charging port. You can easily charge this walkie talkie anywhere.
Standard Package:
- Radio*1
- Antenna*1
- Battery*1
- Desk Charger*1
- Belt Clip*1
- Hand Starp*1
- Manual*1
Technical Data:
| SPECIFICATION | TRANSMITTER | RECEIVER | |||
| Frequency Range | 136-174MHz or
400-480MHz |
Output Power | 5W | RF Sensitivity | ≤ 0.25uV/≤ 0.3uV |
| Channel Spacing | 16 | Current | ≤1.5A | Silent Sensitivity | ≤0.2uV/≤ 0.25uV |
| Memory Channel | 12.5 KHz/ 25 KHz | Modulation Distortion | <5%(300-3000Hz) | Audio Frequency Power | ≥500mW |
| Rated Voltage | 7.4V DC | Maximum Frequency Deviation |
≤ 5KHz/ ≤ 2.5KHz | Audio Distortion | ≤5% |
| Battery Capacity | 2000mAh | CTCSS Frequency Deviation |
0.75KHz± 50Hz | Modulation Receiver Bandwidth |
± 7KHz |
| Frequency Sensitivity | ±2.5ppm | Remanent Radiation | ≤ 7uW | Spurious Rejection | ≥55dB |
| Antenna Impedance | 50Ω | Modulation Mode | FM | Selectivity | ≥65dB |
| Dimension | 107x53x39 mm (without antenna) |
Remanent Modulation | ≤-35dB | Intermodulation | ≥60dB |
