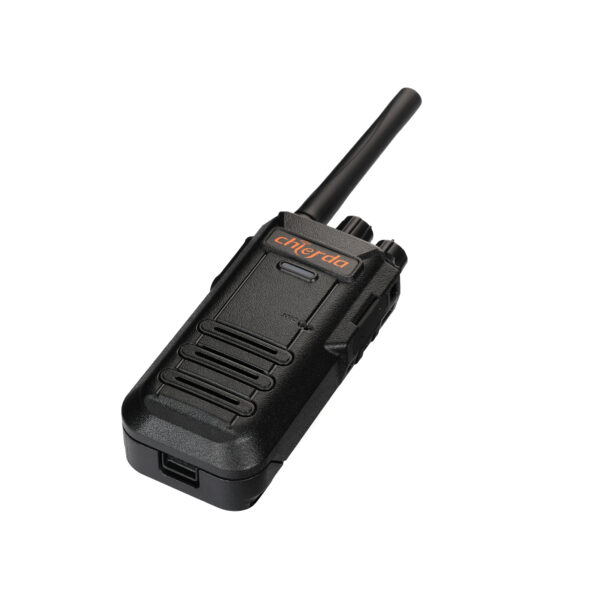

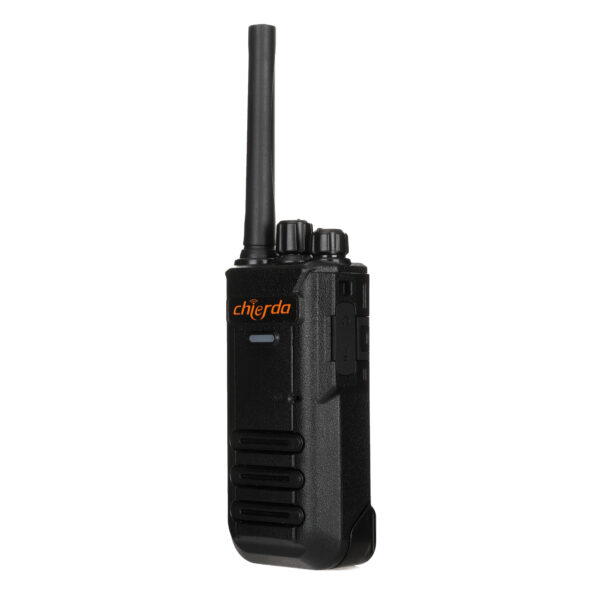

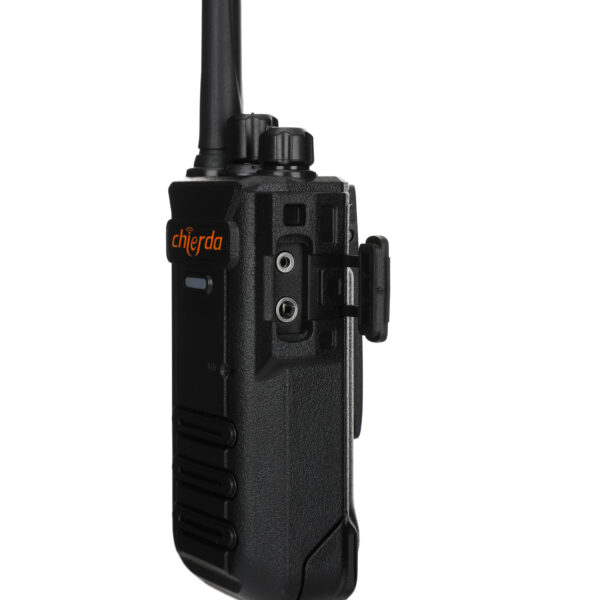

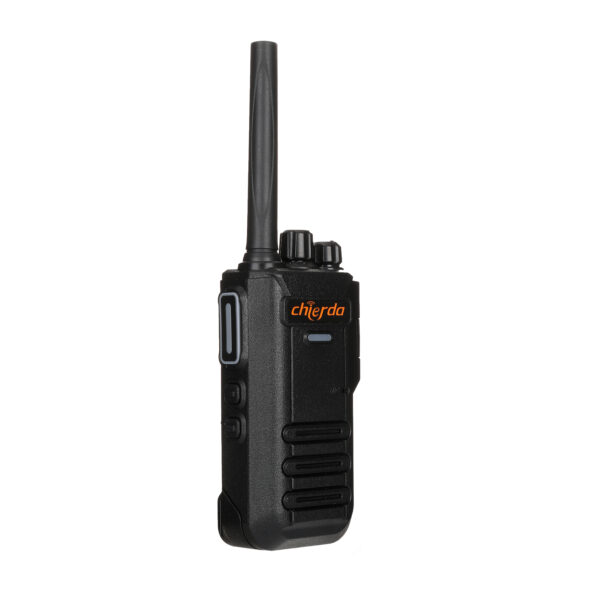

CD16 4000/5200mAh High Capacity Battery Walkie Talkie

Features:

• Long Battery Life, 4000mAh/5200mAh rechargeable battery for option
• 2W/0.5W Analog Radio, License-free PMR446/FRS

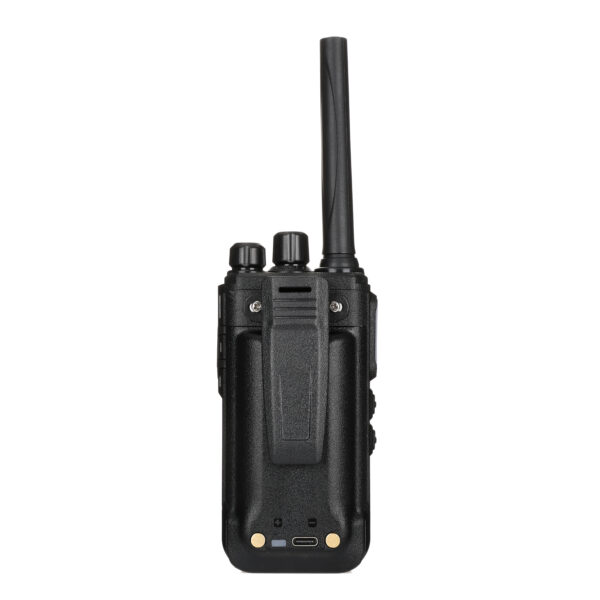

• Type-C Charging
• Powerful Flashlight
• One-key Channel Copy and Frequency Pairing

Application:

• Warehouses
• Construction Sites
• Job sites
• Transportation
• Outdoor

Standard Package:

• Radio*1
• Battery*1
• Antenna*1
• Belt Clip*1

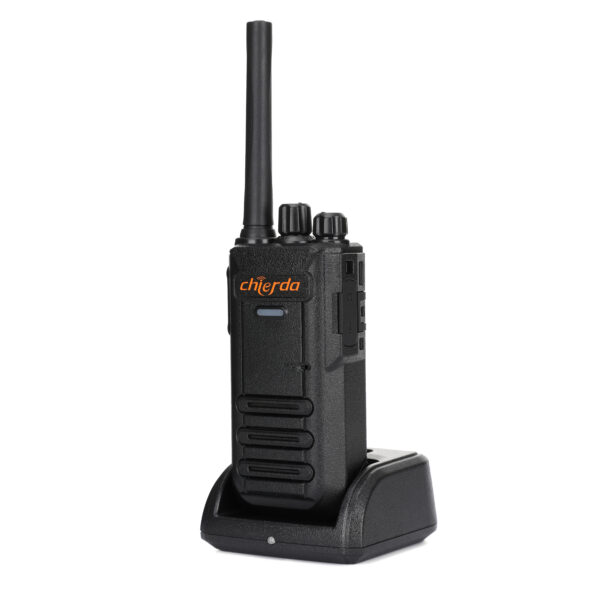

• Charging cradle*1
• Hand Strap*1
• Users’ Manual*1

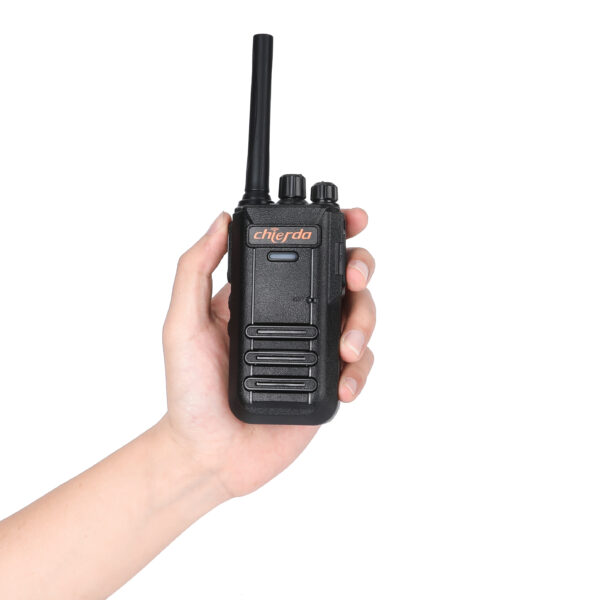

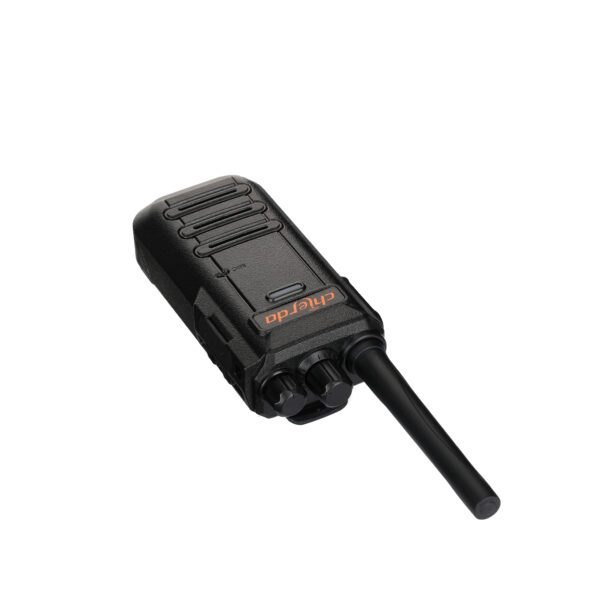

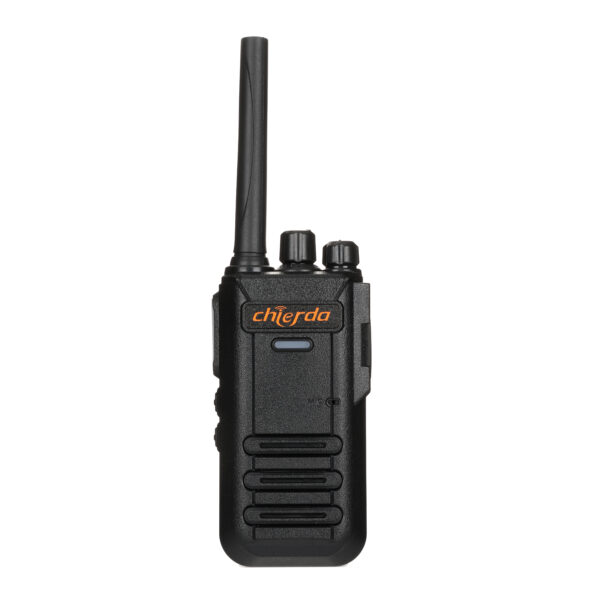

Chierda CD16 walkie talkie features a compact ergonomics design on body. It is equipped with a large capacity battery, which can outlast for every shift.

Crystal Clear Sound

CD16 walkie talkie is equipped with an anti-magnetic and high-volume speaker to deliver clear sound in noisy environments.

Wireless Copy

CD16 has one-key frequency pairing and channel copy function. You can easily pair the walkie talkie with your current devices.



Technical Data:

SPECIFICATION		TRANSMITTER		RECEIVER
Frequency Range	VHF：136-174MHz or UHF: 400-480MHz	Output Power	2W	RF Sensitivity	≤ 0.25uV/≤0.3uV
Channel Spacing	16	Current	≤1.2A	Silent Sensitivity	≤ 0.2uV/≤0.25uV
Memory Channel	12.5 KHz / 25 KHz	Modulation Distortion	<5%(300-3000Hz)	Audio Frequency Power	≥300mW
Rated Voltage	3.7V DC	Maximum Frequency Deviation	≤ 5KHz/ ≤ 2.5KHz	Audio Distortion	≤5%
Battery Capacity	4000mAh/5200mAh	CTCSS Frequency Deviation	0.75KHz± 50Hz	Modulation Receiver Bandwidth	±7KHz
Frequency Sensitivity	± 2.5ppm	Remanent Radiation	≤ 7uW	Spurious Rejection	≥55dB
Antenna Impedance	50Ω	Modulation Mode	16K∅F3E/11K∅F3E	Selectivity	≥65dB
Dimension	109x57x41 mm ( without antenna )	Remanent Modulation	≤-35dB	Intermodulation	≥60dB

FAQ

Q1: What is your Minimum Order Quantity (MOQ)?

Our MOQ for standard neutral products is usually 2 units. For custom branding (OEM), the MOQ depends on the level of customization—usually 500 units for custom logos. We also support sample orders for quality testing before bulk purchasing.

Q2: What is the lead time for bulk orders?

For standard products in stock, we can ship within 5 working days. For bulk OEM orders, the typical production time is 15-25 days, depending on the order volume and customization requirements.

Q3: Do you offer bulk discounts or wholesale pricing?

Yes, we offer competitive factory-direct tiered pricing. The larger your order volume, the lower the cost per unit. Please send us an inquiry with your estimated order size to get an official quotation.

Q4: What OEM/ODM customization services do you provide?

We offer comprehensive customization including: laser/silk-screen logo printing, custom gift boxes and user manuals, firmware customization (boot-up screens, custom channel frequencies, local language voice prompts), and even custom shell colors or completely new mold designs (ODM).

Q5: What is your warranty policy and how do you handle after-sales?

We provide a 12-month warranty on the radio body and a 6-month warranty on accessories (batteries, chargers, antennas). In case of a rare manufacturing defect, we provide replacement radios or technical troubleshooting guidance with your next shipment.
