Features:
- Long Range
- 8 Repeater Channels
- One Key Group Call Function
- 2500mAh Battery
- Type-C Charging Port
- LCD Display
- Powerful Flashlight
- VOX Hands-free function

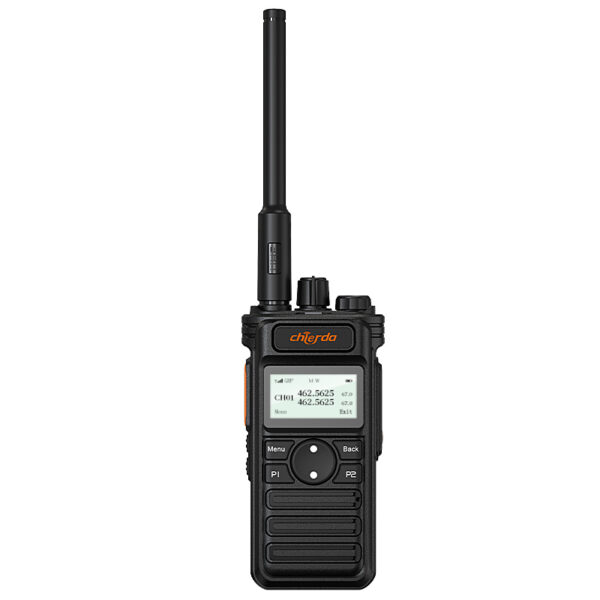

Made of high-quality ABS material, Chierda CD108S UHF radio is rugged and durable. It is easy to operate with an LCD screen and a half keyboard design. It is ideal for use in manufacturing, factories, construction, and outdoors.
Long Range UHF Radio
With 10W output power, CD108S has much stronger signal penetration to reach a long distance with up to 6000 sq ft on a floor or 50 floors in a building. If you are in a dense forest, it can reach a range of 3-5 km.
Quick Pairing
CD108S is compatible with other walkie-talkies. You can quickly pair the frequency to talk to your partners.
LCD Display
It features a 1.46-inch LCD display and a half keyboard. Users can directly know the status and reset the information. Beginner-friendly.
Group Call
You can set up a group and customize the key function. After long-pressing the key, you can quickly start a group call.
Long Battery Life
CD108S is equipped with a 2500mAh Li-ion battery, which can continuously be used for 15 hours and outlast 117 hours on standby. In addition, it allows for 2 charging ways, Type-C charging and desktop charging.
Standard Package:
Radio *1
Battery *1
Antenna *1
Belt clip*1
Charging cradle *1
Charging cable *1
User’s manual *1
Technical Data:
| Specification | Transmitter | Receiver | |||
| Frequency Range | UHF: 400-480MHz | Output Power | ≤10W | RF Sensitivity | ≤0.25uV/≤0.3uV |
| Channel | 16 | Current | ≤2.5A | Silent Sensitivity | ≤0.2uV/≤0.25uV |
| Memory Channel | 12.5KHz/25KHz | Modulation Distortion | ＜5%（300-3000Hz） | Audio Frequency Power | ≥500mW |
| Rated Voltage | 7.4V DC | Maximum Frequency Deviation | ≤5KHz/≤2.5KHz | Audio Distortion | ≤5% |
| Battery Capacity | 2500mAh | CTCSS Frequency Deviation | 0.75KHz±50Hz | Intermodulation | ≥60dB |
| Frequency Sensitivity | ±2.5ppm | Remanent Radiation | ≤7uW | Spurious Rejection | ≥55dB |
| Antenna Impendance | 50Ω | Modulation Mode | FM | Selectivity | ≥65dB |
| Dimension | 119x54x37mm
(without antenna and knobs) |
||||
Resources:
→Download CD108S brochure
