Features:
- Long Battery Life, 4000mAh/5200mAh rechargeable battery
- Rugged construction, Ergonomic design on grip
- Built for construction sites, warehouses, and other harsh environments
- Dual charging: Type-C Charging port and charging cradle
- Quick pairing: One-key Frequency Pairing, One-key Channel Copy
- Frequency Hopping, Scrambler function
- Powerful Code-breaking function
- Alarm function
Application:
- Warehouses
- Construction Sites
- Business
- Property
- School
Standard Package:
- Radio*1
- Battery*1
- Antenna*1
- Belt Clip*1
- Charging cradle*1
- Hand strap*1
- Users’ Manual*1

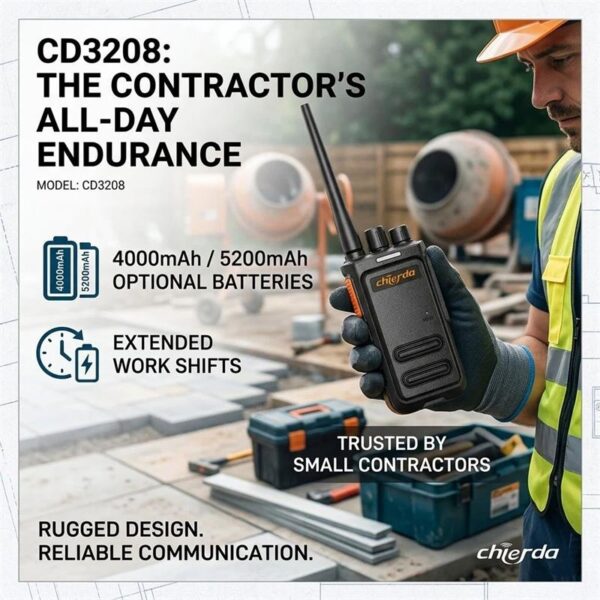

CD3208 and CD3107 are the same series. CD3208 is the upgraded version of CD106. It is equipped with a large capacity battery to last longer in every usage. If you are looking for a useful device for construction sites, CD3208 is a good choice. The standard version is equipped with a 4000mAh rechargeable battery with up to 21 days of standby. Optional 5000mAh battery can last for 30 days of standby.
Powerful Signal
CD3208 has a powerful signal, which can penetrate concrete walls even in complex environments.
Code-breaking
CD3208 radio has frequency hopping and scrambler function to protect your privacy and security.
Rugged Construction
CD3208 is made of ABS material and built to withstand drops and impacts. It is ideal for use in construction sites, warehouse,s and other harsh environment.
Alarm Function
CD3208 has emergency alert function. You can trigger the loud alert with one key. It is essential for use in job sites to protect workers’ safety.
Technical Data:
| SPECIFICATION | TRANSMITTER | RECEIVER | |||
| Frequency Range | VHF：136-174MHz or UHF: 400-480MHz |
Output Power | 2W | RF Sensitivity | ≤ 0.25uV/≤0.3uV |
| Channel Spacing | 16 | Current | ≤1.5A | Silent Sensitivity | ≤ 0.2uV/≤0.25uV |
| Memory Channel | 12.5 KHz / 25 KHz | Modulation Distortion | <5%(300-3000Hz) | Audio Frequency Power | ≥300mW |
| Rated Voltage | 3.7V DC | Maximum Frequency Deviation |
≤ 5KHz/ ≤ 2.5KHz | Audio Distortion | ≤5% |
| Battery Capacity | 4000mAh/5200mAh | CTCSS Frequency Deviation | 0.75KHz± 50Hz | Modulation Receiver Bandwidth |
±7KHz |
| Frequency Sensitivity | ± 2.5ppm | Remanent Radiation | ≤ 7uW | Spurious Rejection | ≥55dB |
| Antenna Impedance | 50Ω | Modulation Mode | 16K∅F3E/11K∅F3E | Selectivity | ≥65dB |
| Dimension | 98.5x53x35 mm ( without antenna ) |
Remanent Modulation | ≤-35dB | Intermodulation | ≥60dB |
Resource:
→Download CD3208 manual
