Features:
- 2W Rugged Radio
- Type-C Charging
- Frequency Hopping, Voice Scrambler
- Optional Battery Capacity between 1500mAh/2600mAh
- One-key Channel Copy and Frequency Pairing for Easy Setup
- Powerful Code-breaking function
Application:
- Warehouses
- Construction Sites
- Commerce
- Security
Standard Package:
- Radio*1
- Battery*1
- Antenna*1
- Belt Clip*1
- Desktop Charger*1
- Hand Strap*1
- Users’ Manual*1
Decoding Performance
CD360 walkie talkie has powerful decoding ability to break down the barriers btween different radios. Quickly communicate with the former devices.

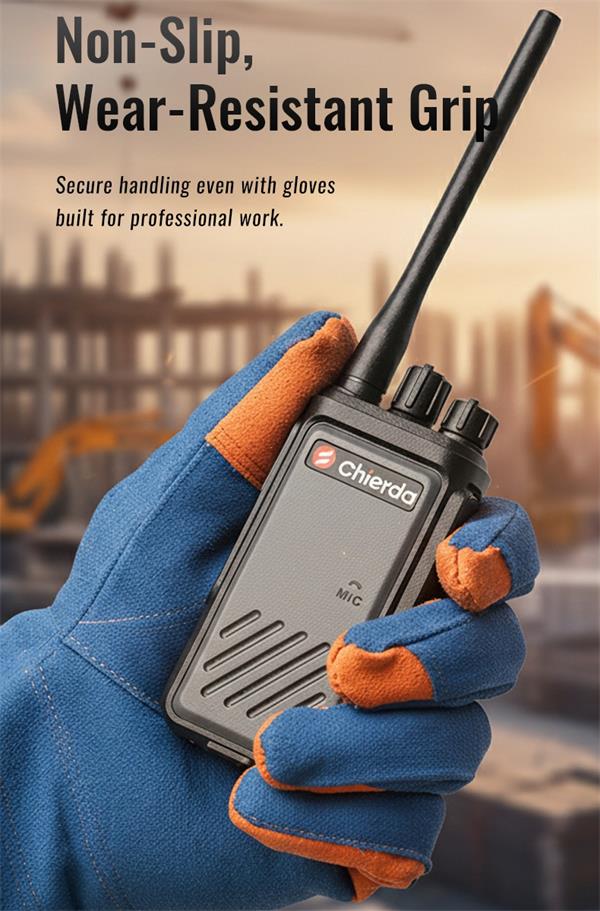

Wear-resistant Design

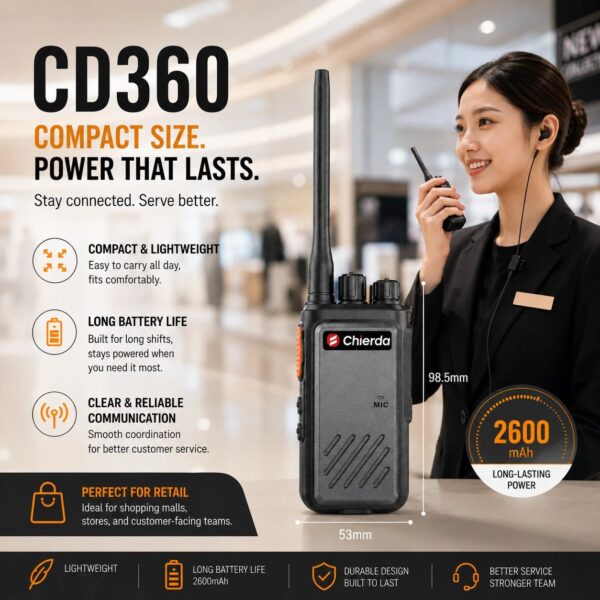

Tired of big walkie talkies? CD360 features compact design. The dimension is 98.5x53x35 mm. Even with glove on, you can handle secure.
16 Channels
CD360 walkie talkie has 16 preset channels. Use the knob to switch between channels. You can also use program software to customize the setting, channels, CTCSS/DCS…
Technical Data:
| SPECIFICATION | TRANSMITTER | RECEIVER | |||
| Frequency Range | VHF：136-174MHz or UHF: 400-480MHz |
Output Power | 2W | RF Sensitivity | ≤ 0.25uV/≤0.3uV |
| Channel Spacing | 16 | Current | ≤1.5A | Silent Sensitivity | ≤ 0.2uV/≤0.25uV |
| Memory Channel | 12.5 KHz / 25 KHz | Modulation Distortion | <5%(300-3000Hz) | Audio Frequency Power | ≥300mW |
| Rated Voltage | 3.7V DC | Maximum Frequency Deviation |
≤ 5KHz/ ≤ 2.5KHz | Audio Distortion | ≤5% |
| Battery Capacity | 1500mAh/2500mAh | CTCSS Frequency Deviation | 0.75KHz± 50Hz | Modulation Receiver Bandwidth |
±7KHz |
| Frequency Sensitivity | ± 2.5ppm | Remanent Radiation | ≤ 7uW | Spurious Rejection | ≥55dB |
| Antenna Impedance | 50Ω | Modulation Mode | 16K∅F3E/11K∅F3E | Selectivity | ≥65dB |
| Dimension | 98.5x53x35 mm ( without antenna ) |
Remanent Modulation | ≤-35dB | Intermodulation | ≥60dB |
FAQ
Q1: What is your Minimum Order Quantity (MOQ)?
Our MOQ for standard neutral products is usually 2 units. For custom branding (OEM), the MOQ depends on the level of customization—usually 500 units for custom logos. We also support sample orders for quality testing before bulk purchasing.
Q2: What is the lead time for bulk orders?
For standard products in stock, we can ship within 5 working days. For bulk OEM orders, the typical production time is 15-25 days, depending on the order volume and customization requirements.
Q3: Do you offer bulk discounts or wholesale pricing?
Yes, we offer competitive factory-direct tiered pricing. The larger your order volume, the lower the cost per unit. Please send us an inquiry with your estimated order size to get an official quotation.
Q4: What OEM/ODM customization services do you provide?
We offer comprehensive customization including: laser/silk-screen logo printing, custom gift boxes and user manuals, firmware customization (boot-up screens, custom channel frequencies, local language voice prompts), and even custom shell colors or completely new mold designs (ODM).
Q5: What is your warranty policy and how do you handle after-sales?
We provide a 12-month warranty on the radio body and a 6-month warranty on accessories (batteries, chargers, antennas). In case of a rare manufacturing defect, we provide replacement radios or technical troubleshooting guidance with your next shipment.
