Features:
- 10W Digital Radio
- 2500mAh Large Capacity Battery
- Alarm Mode
- VOX Hands-free Function
- Tail Sound Elimination
- Wireless Repulication
- Squelch
- Powerful Flashlight
Application:
- Outdoor
- Fishing
- Security
- Warehouse
Standard Package:
- Radio*1
- Battery*1
- Charger*1
- Belt clip*1
- Strap*1
- Antenna*1
- User’s manual*1

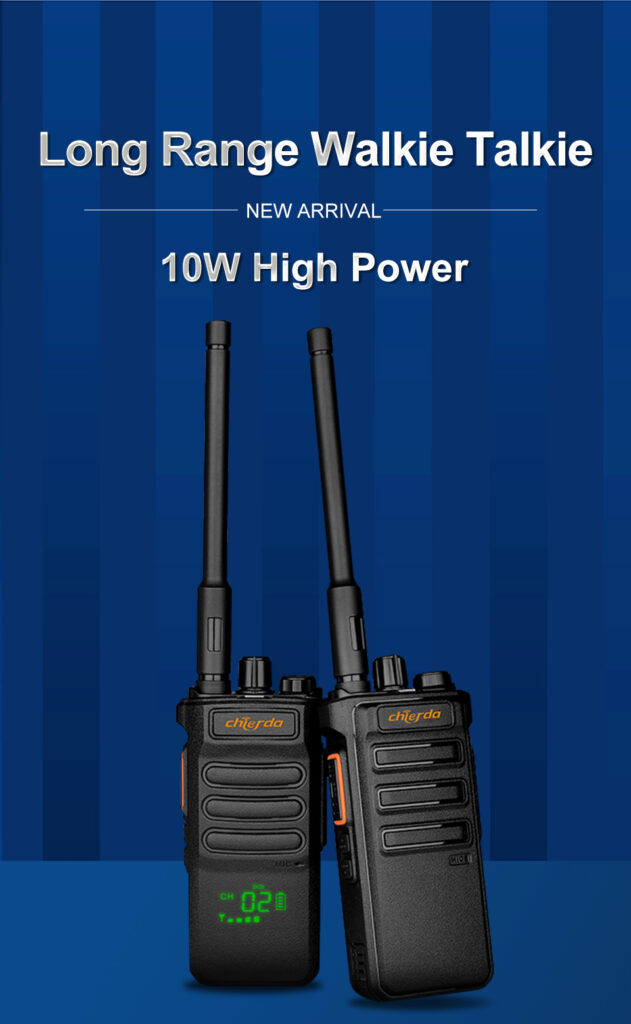

High Power, Long Range
Wireless Copy
Wireless copy function enables fast and convenient channel & parameter cloning between radios.
Convenient Charging
Designed with convenient charging to keep your radio powered up effortlessly. It can charged by charging cradle or directly via type-c charging cable.
Long Battery Life
CD108 is equipped with a 2500mAh battery. It can last for 12-18 hours of working and 200 hours of standby. It can reduce the number of charging cycles and improve working efficiency.
High Gain Antenna
The signal is more powerful and can penetrate concret walls in the building.
Emergency Alarm
Technical Data:
| SPECIFICATION | TRANSMITTER | RECEIVER | |||
| Frequency Range | VHF:136-174MHz or UHF:400-480MHz |
Output Power | 10W | RF Sensitivity | ≤ 0.25uV/ ≤ 0.3uV |
| Channel | 128 | Current | ≤2.5A | Silent Sensitivity | ≤0.2uV/≤0.25uV |
| Memory Channel | 12.5 KHz / 25 KHz | Modulation Distortion | ＜5%(300-3000Hz) | Audio Frequency Power | ≥500mW |
| Rated Voltage | 7.4V DC | Maximum Frequency Deviation |
≤ 5KHz/≤ 2.5KHz | Audio Distortion | ≤5% |
| Battery Capacity | 2500mAh | CTCSS Frequency Deviation |
0.75KHz± 50Hz | Modulation Receiver Bandwidth |
±7KHz |
| Frequency Sensitivity | ± 2.5ppm | Remanent Radiation | ≤7uW | Spurious Rejection | ≥55dB |
| Antenna Impedance | 50Ω | Modulation Mode | 16K∅F3E/11K∅F3E | Selectivity | ≥65dB |
| Dimension | 119x54x37mm (Without Antenna) |
Remanent Modulation | ≤-35dB | Intermodulation | ≥60dB |
