V9 10W Analog Portable Repeater Power Amplifier UHF or VHF

Mini and Portable, 10 Watt Analog Repeater, IP67 Waterproof



Features:

  • 10 Watt Portable Analog Repeater, Easy to Carry with
  • Built-in Full Deplexer
  • Compatible with Analog Walkie Talkies to Extend Coverage 20-25km
  • Connected with Hand Microphone
  • Frequency customizable, Support OEM/ODM
  • IP67 Waterproof (optional)
  • LCD Display
  • TDMA

Application:

  • Farms
  • Factories
  • Hotels
  • Fleets

Chierda V9 full duplex mini base station mobile repeater is designed to expand the transmission range of walkie-talkies or mobile radios, greatly improving your communication capabilities.

Suitable for outdoor activities such as car racing, concerts, ball games, construction sites, natural disasters, rescue, mountain climbing and so on.



Easy Install

Simple installation and flexible operation; the repeater can be operated flexibly as mounted on sites or mobile.

IP67 Waterproof

The shell is made of metal, strong and rugged. It is drop-resistant. In addition, it has good sealing and IP67 rating waterproof & dustproof.

Versatile Power Supply

V9 repeater has multiple power supply options, a dedicated supporting power supply, DC12-24V power supply, vehicle power supply.

Compatible with Walkie Talkies

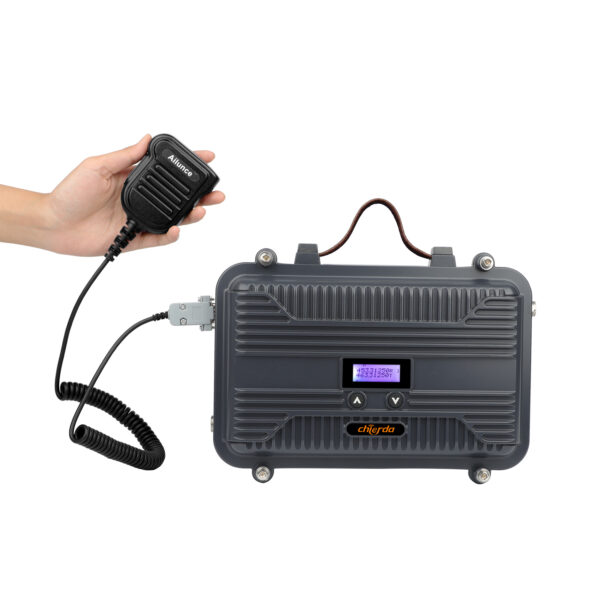

V9 repeater can be compatible with analog walkie talkies to extend communication range up to 25 kilometer. It can also be connected to a hand microphone to talk with other walkie talkies.

Customization

Product LOGO is customizable. You can make customization for your own brand. In addition, frequency band also can be customized, VHF, UHF or GMRS.

Standard Package:

Technical Data:

SPECIFICATION TRANSMITTER RECEIVER
Frequency Range VHF:136-174MHz or
UHF:400-470MHz
Output Power 10W Intermediate
Frequency
150MHz /455MHz
Channel Capacity 16CH Intermediate
Frequency
160MHz/465MHz Sensitivity 0.2μV(Wide)
0.25μV(Narrow)
Channel Spacing ±12.5KHz (Narrowband) /
±25kHz (Broadband)
Modulation Method F3E Squelch Sensitivity 0.15μV (Wide)
0.2μV(Narrow)
Operating Voltage DC12V ~24V Spurious Emission -60dB Or Less Adjacent Channel
selectivity
≥70dB (Wide)/
≥65dB(Narrow)
Operating Temperature -30~ +60° Maximum Frequency Deviation Wide: ±5kHz
Narrow: ±2.5kHz
Intermodulation/
Spurious Rejection/
Image Rejection
≥55dB
Frequency Stability ±0.5ppm FM Noise Wide:≤45dB
Narrow :≤40dB
FM Ham and Noise ≤-45dB(Wide) /
≤-40dB(Narrow)
Antenna Impedance 50Ω work broadband ≤±7KHz / ≤±5KHz
Size 190x75x215 mm Modulation Type F3E
Audio Distortion ≤5%

Learn More Information from FAQ of V9 Repeater

Resources:

→Download V9 Repeater Manual

→Download V9 Analog User’s Manual & Programming software
